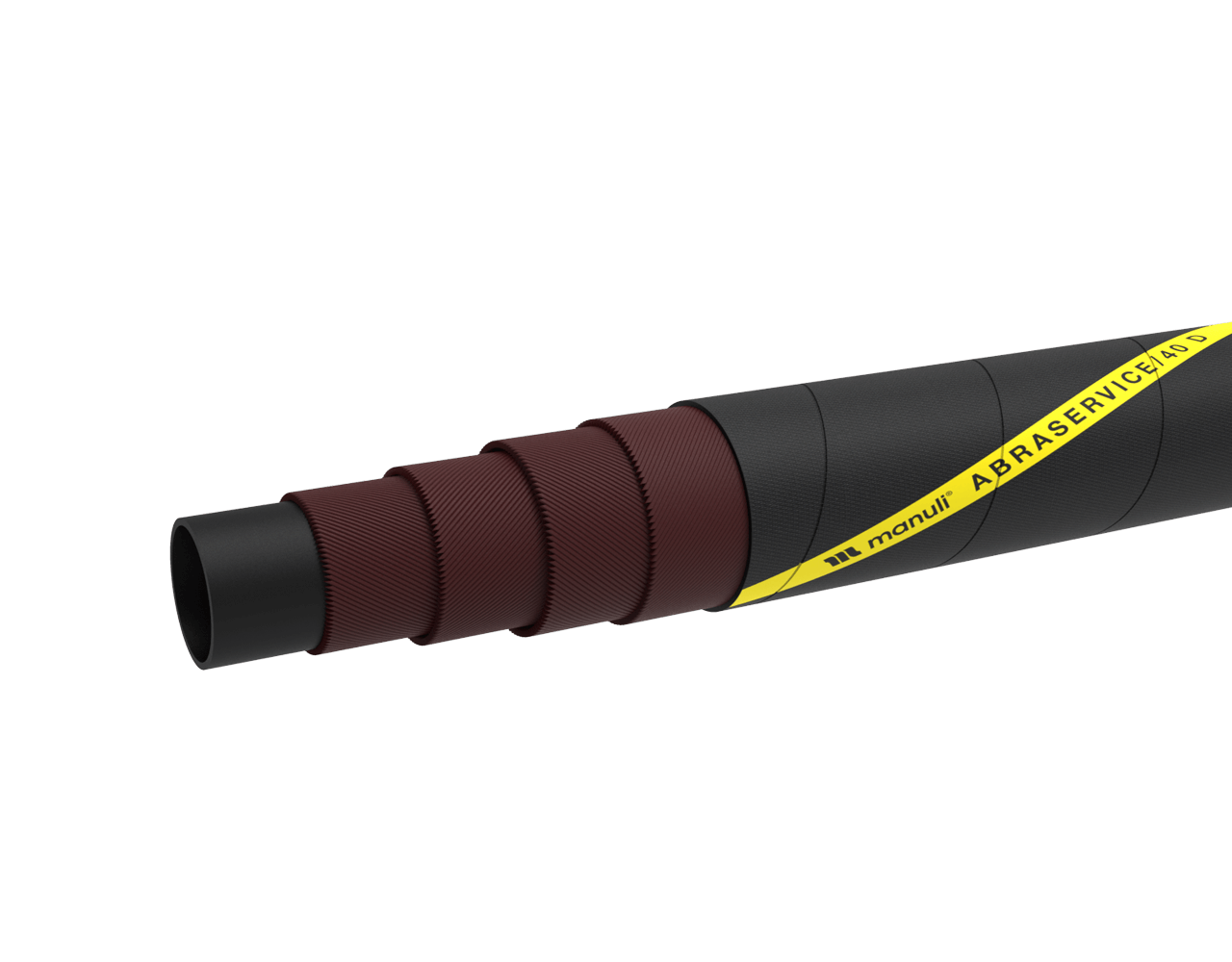

Technical Specifications:
Delivery hose for mortar, gypsum, grout spraying at open air, indoor or underground construction sites, etc.
WORKING PRESSURE: 40 bar / 580 psi.
TUBE: Black, NR/SBR rubber; abrasion resistant thick tube.
REINFORCEMENT: High-tensile synthetic cord.
COVER: Black NR/SBR rubber; abrasion resistant. Mylar layline for positive, permanent identification.
FEATURES: Softwall delivery structure; High resistance to continuous abrasion.
Long length assemblies available – Max. length: 61m
TEMPERATURE RANGE: From -40°C to +80°C (-40°F to +176°F).
| ABRASERVICE/40 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | DASH | SKIVE |
| H80014019 | 19 | -12 | SR+D08000 SERIES |
| H80014025 | 25 | -16 | SR+D08000 SERIES |
| H80014031 | 31 | -20 | SR+D08000 SERIES |
| H80014035 | 35 | -22 | SR+D08000 SERIES |
| H80014038 | 38 | -24 | SR+D08000 SERIES |
| H80014051 | 51 | -32 | SR+D08000 SERIES |
