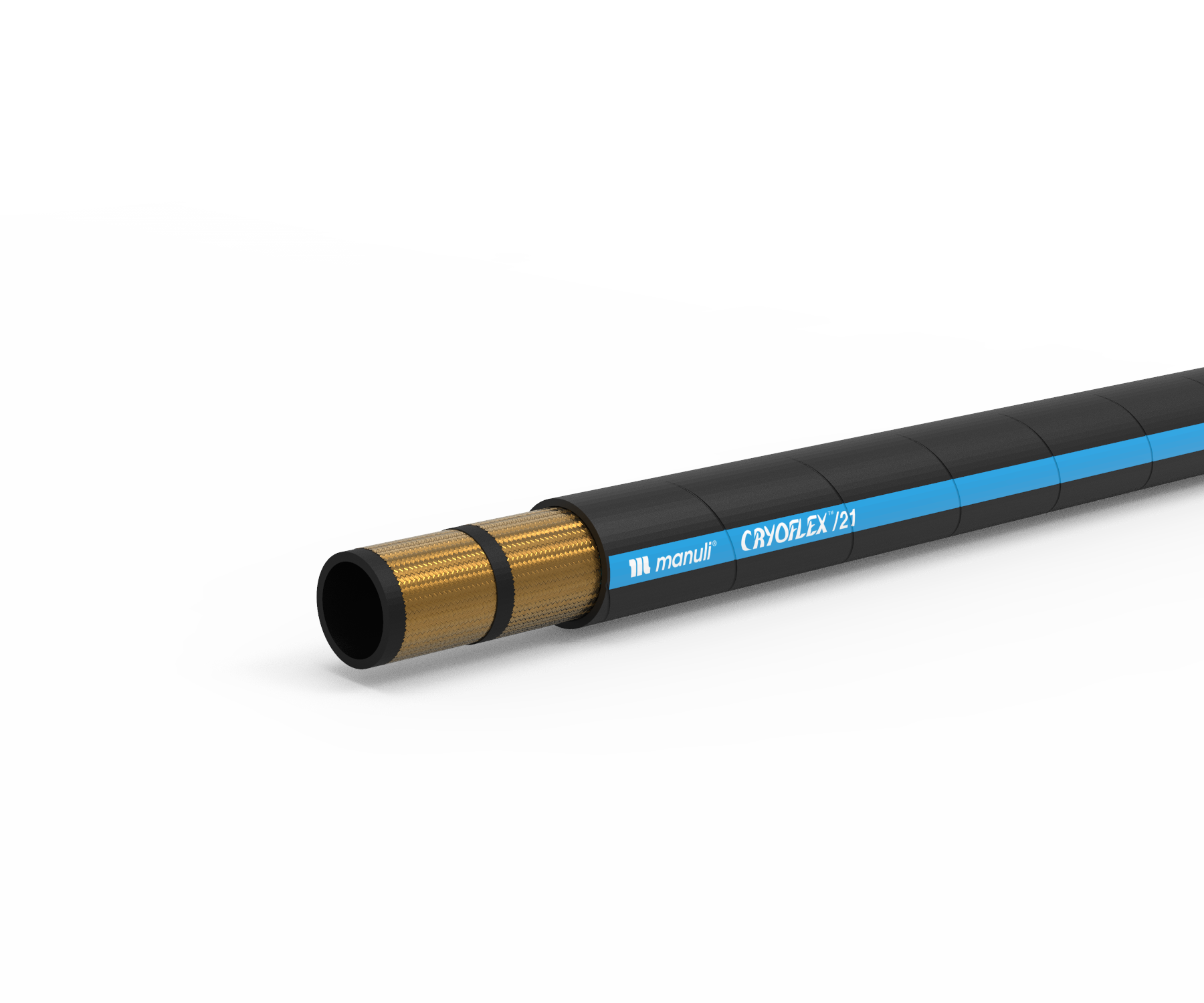

CRYOFLEX/21
EXTREME COLD ENVIRONMENTS
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01158016* | 16 | -10 | 5/8” | 22.2 | 0,87 | 24.0 | 0.94 | 210 | 3,040 | 840 | 12,180 | 100 | 3.94 | 609 | 0.41 | MF+M00120-10 | OPF-10 |
| H01158019* | 19 | -12 | 3/4” | 25.6 | 1.01 | 27.7 | 1.09 | 210 | 3,040 | 840 | 12,180 | 120 | 4.72 | 765 | 0.51 | MF+M00120-12 | OPF-12 |
| H01158025* | 25 | -16 | 1” | 33.0 | 1.30 | 35.2 | 1.39 | 210 | 3,040 | 840 | 12,180 | 150 | 5.91 | 1,188 | 0.80 | MF+M00130-16 | OPF-16 |
KEY FEATURES
• Good flexibility at very low temperatures
• Reduced bend radius, according to compact hoses standard requirements
• Easy mounting in any installation
• High impulse resistance according to ISO 18752
• Weight saving vs. traditional hose construction
• No-skive fitting solution available
• Isobaric pressure rating for easy selection and product management
APPLICATIONS & FLUIDS
• Medium pressure hydraulic lines for general hydraulics in extreme cold environment
• Applications with installation constraints (short assemblies, compact spaces, low bend radii etc.)
• Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-60 °C, -76 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
2 high tensile steel braids
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
ISO 18752-B Ext.
TYPE APPROVALS
MSHA; CU-TR
