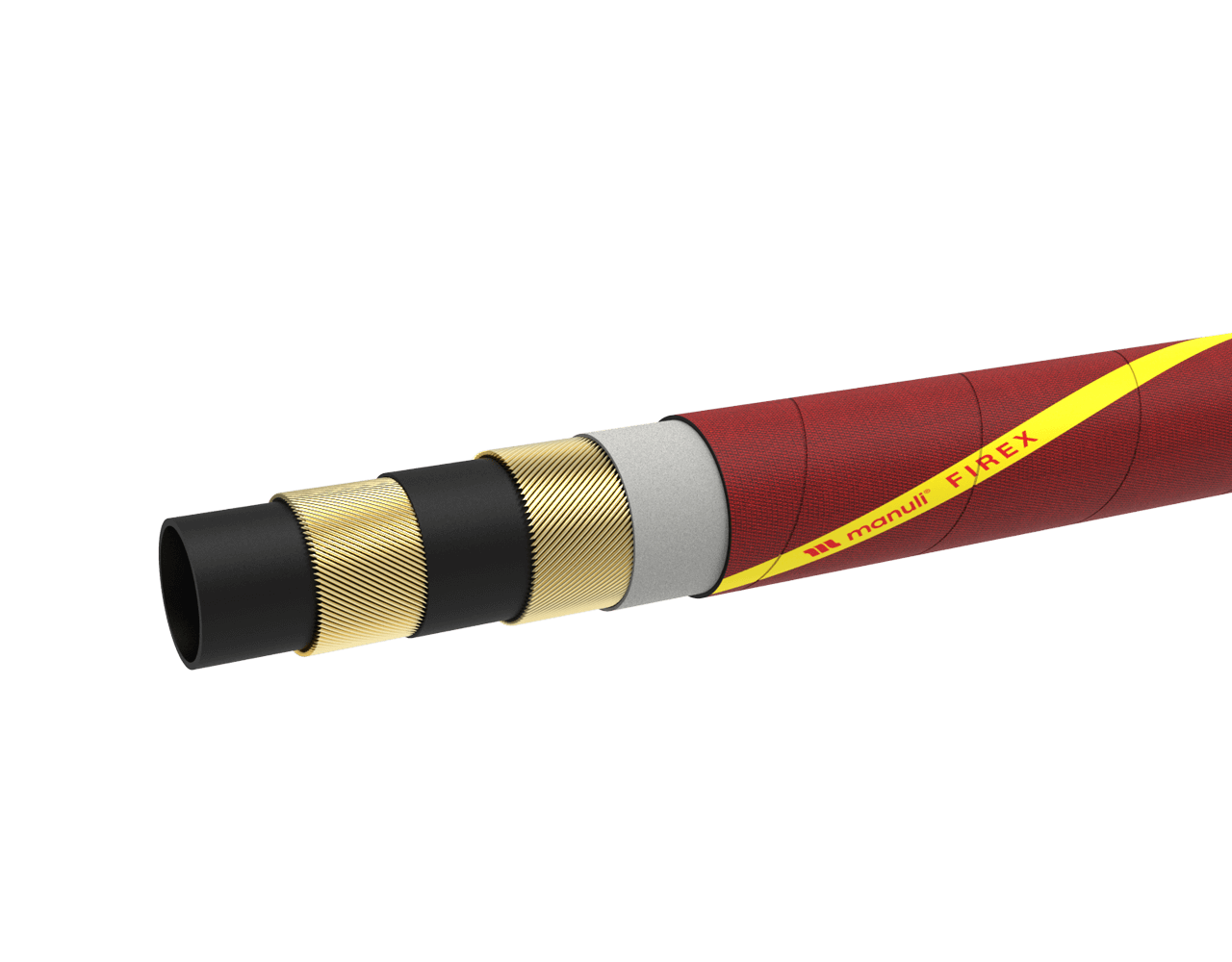

FIREX

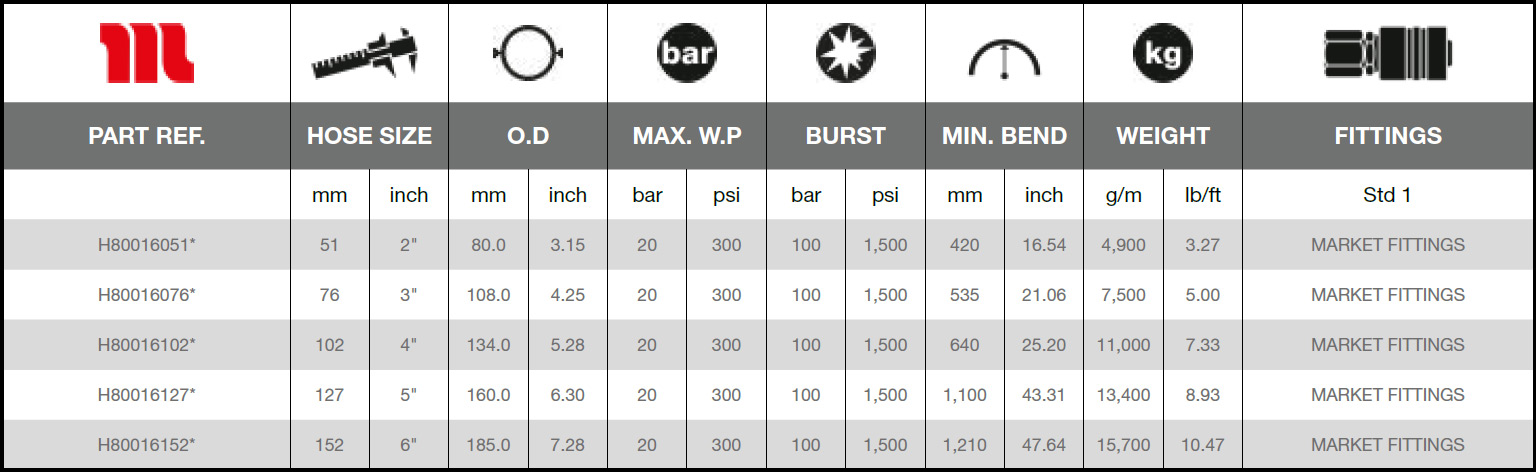

Technical Specifications:

Fire suppression delivery hose for fire-water deluge hose applications on oil rigs. ABS approved for offshore applications.

WORKING PRESSURE: 20 bar / 300 psi.

TUBE: Black, CR rubber.

REINFORCEMENT: High-tensile steel spirals.

COVER: Glass-fibre layers, co-vulcanized with an external layer of red CR rubber; fire, sea-water, abrasion and ozone resistant (black cover available on request)

FEATURES: Hardwall delivery structure; Robust hose structure for longer life in severe applications.

Long length assemblies available – Max. length: 61m

APPLICABLE SPECS: EN 15540:1999 (800°C x 30’) / ABS approval (required)

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).
