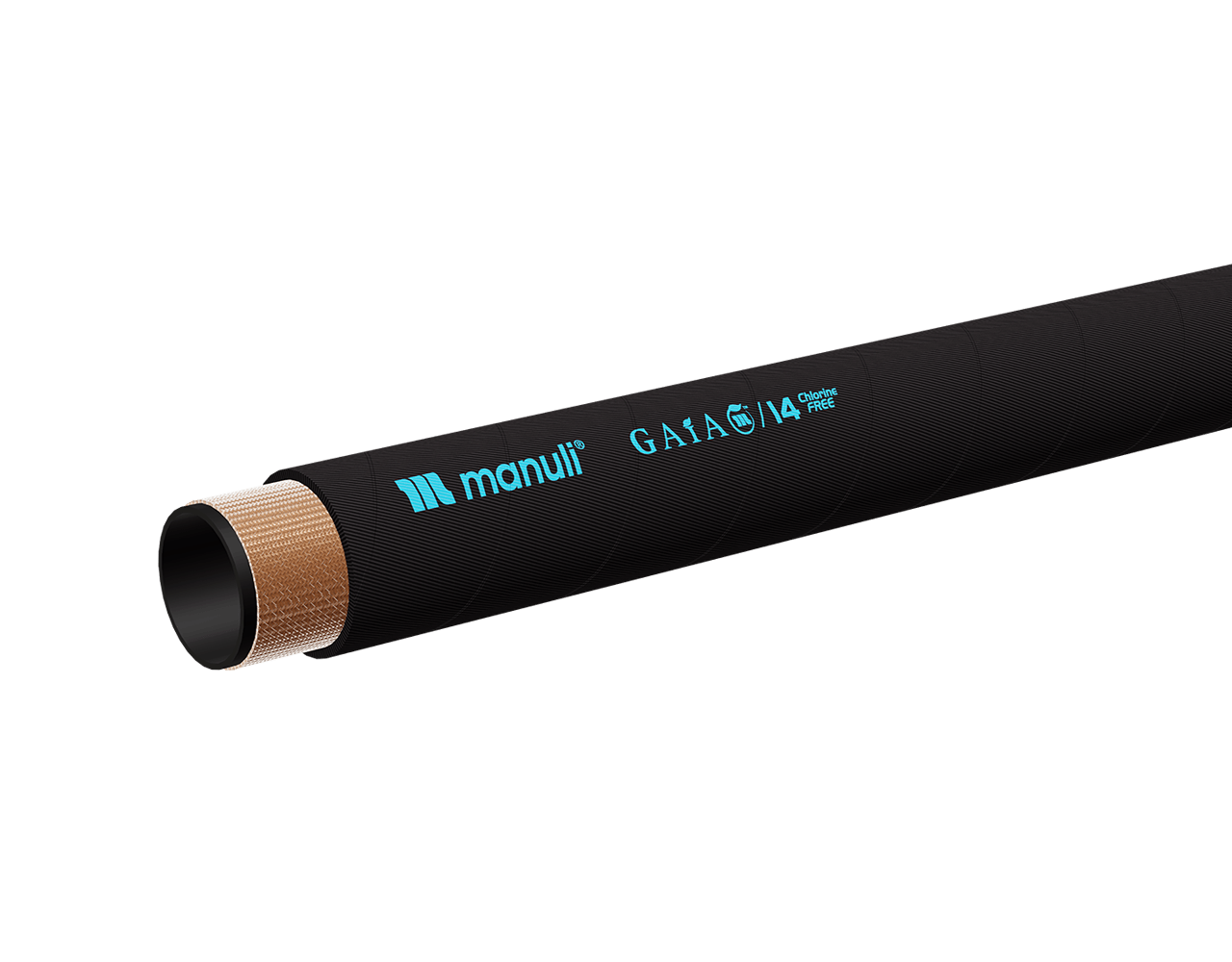

GAIA/14

CHLORINE-FREE LINE

KEY FEATURES

• Compact dimension
• Very low bend radius, suitable for difficult installations
• High flexibility
• Outstanding abrasion and ozone resistance
• Flame retardant MSHA approved cover
• MiniFit special dedicated fittings, compact dimensions

TECHNICAL DATA
H10146010*	10	– 6	3/8″	15.4	0.6	17.0	0.66	280	4,060	1,120	16,244	63.0	2.48	396	0.27	MF + M00120-06	OPF-06
H10146012*	12	– 8	1/2″	18.5	0.72	20.3	0.79	280	4,060	1,120	16,244	80.0	3.14	515	0.35	MF + M00120-08	OPF-08
H10146016*	16	– 10	5/8″	22.7	0.89	24.7	0.97	280	4,060	1,120	16,244	90.0	3.54	754	0.51	MF + M00120-10	OPF-10
H10146019*	19	– 12	3/4″	26.9	1.05	29.3	1.15	280	4,060	1,120	16,244	120.0	4.72	1,077	0.72	MF + M00930-12	OPK-12
H10146025*	25	– 16	1″	34.1	1.34	36.5	1.43	280	4,060	1,120	16,244	150.0	5.9	1,565	1.05	MF + M00930-16	OPK-16

APPLICATIONS & FLUIDS

• Hydraulics: low pressure lines, auxiliary hydraulic systems for OEMs and high performance applications
• Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

CONTINUOUS SERVICE TEMPERATURE RANGE

-46 °C, -50 °F
121 °C, 250 °F

TUBE

Oil resistant synthetic rubber

REINFORCEMENT

One high tensile steel braid (DN 31 with two wire braids)

COVER

Chlorine-Free STRONG cover style, synthetic rubber with extreme abrasion and ozone resistance

APPLICABLE SPECIFICATIONS

ISO 18752 Grade C

TYPE APPROVALS

MSHA
