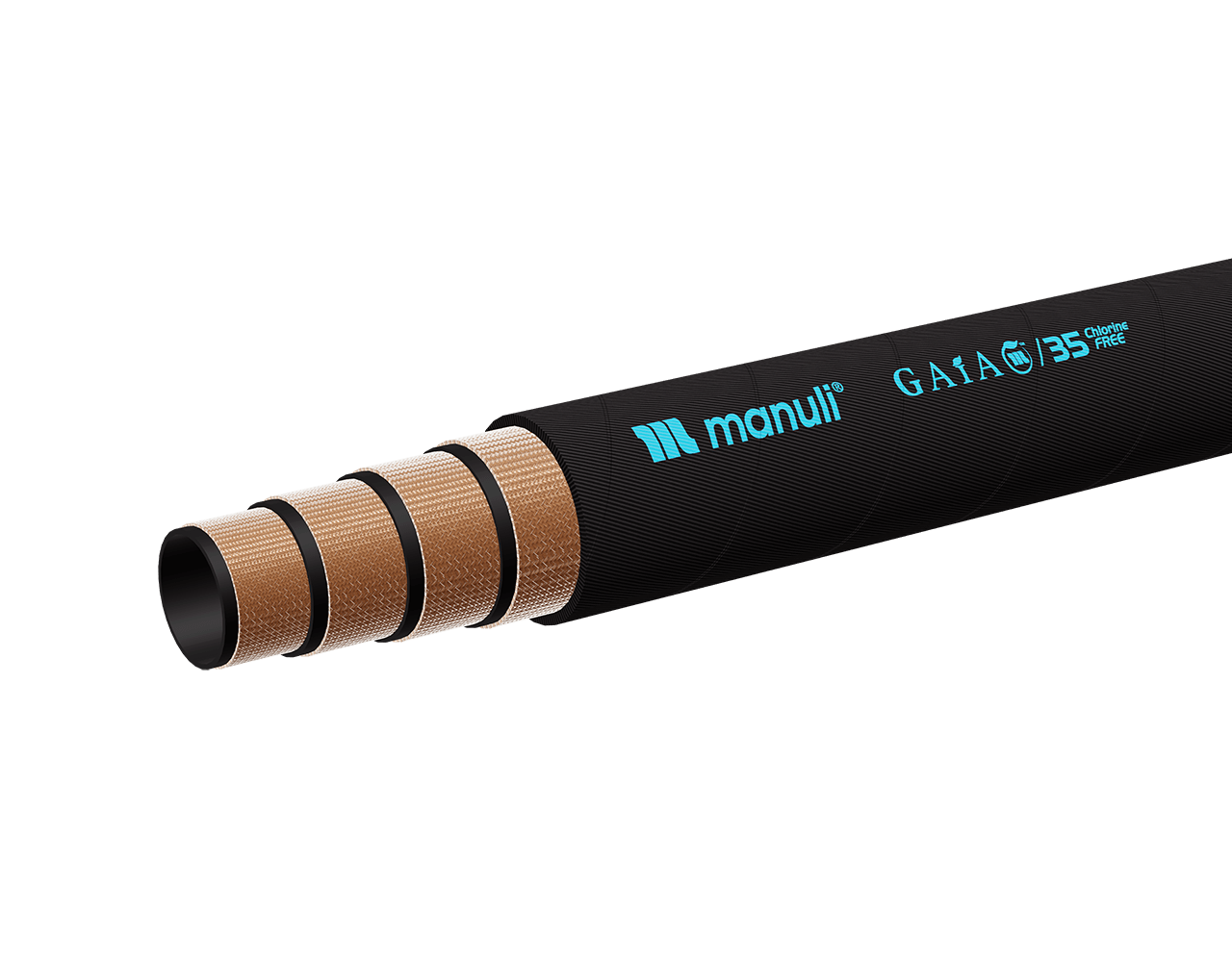

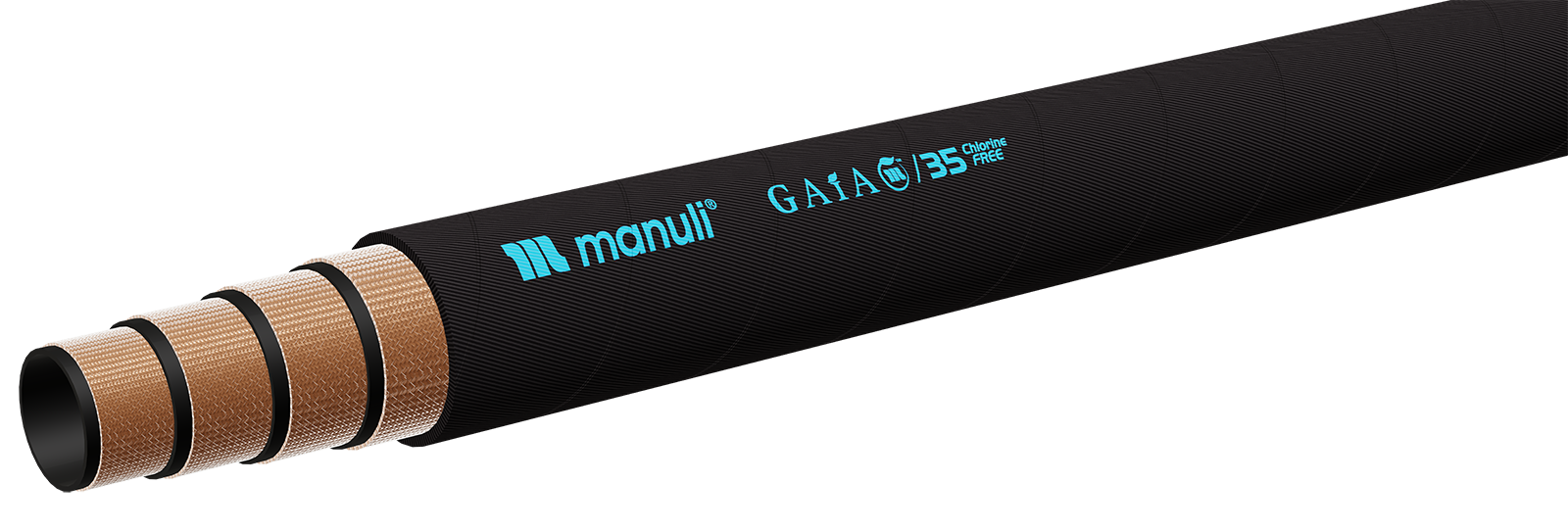

GAIA/35
CHLORINE-FREE LINE
KEY FEATURES
• Bend radius which exceed the standard requirements by - 30% to -50%
• Good flexibility in the whole temperature range
• Easy mounting in any installation
• High impulse resistance according to ISO 18752 requirements
• Weight saving of 20% vs traditional hose construction
• No-skive fitting solution is available
• Isobaric pressure rating for easy selection and product management
APPLICATIONS & FLUIDS
• Chlorine free requirements
• High pressure power lines for general hydraulics
• Applications with installation constraints (short assemblies, compact spaces, low bend radii, etc.)
• Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel wire braids (DN 6 to 12), four high tensile steel wire spirals (DN 16 to 31)
COVER
Special cover compound designed to be chlorine-free with high abrasion and ozone resistance
APPLICABLE SPECIFICATIONS
ISO 18752-C/D (WB structures are Grade C, WS structures are Grade D with STD1 only), JIS K6349, DN 19 and larger sizes meet and exceed EN 856-R13 & ISO 3862-R13 performance
TYPE APPROVALS
MSHA
