M 2000 INS
EXPERT SERVICE LINE

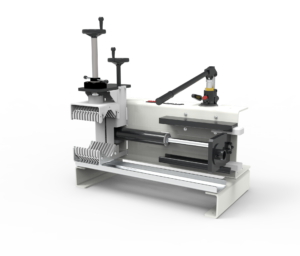

BENCHTOP COUPLING INSERTER
KEY FEATURES
• Compact
• Sturdy
• Powerful
• Manual insert centring device
• Joystick operated clamping & insertion
TECHNICAL SPECIFICATIONS
CAPACITY
6WS: 3/4" - 2" with special tool
6WS: 2" - 4"
Industrial: 6"
DIMENSIONS
800 x 500 x 900 mm
(31 x 20 x 35”)
NET WEIGHT
150 kg (330 lb)
VOLTAGES
380/415 V, 3Ph, 50 Hz
POWER
1.5 kW
MAXIMUM FLANGE
250 mm
INSERTION FORCE
2,000 daN
INSERTION STROKE
300 mm
INSERTION SPEED
Electrical version only
28 mm/s
CLAMPING LENGTH
200 mm
OPTIONS
Manual version available
