M 300 SKY
STARTER & PROFESSIONAL WORKSHOP
STAND TYPE SKIVING MACHINE
KEY FEATURES
• Plug’n skive system
• Large dust collector
• Robust & easily adjustable knife for quick and easy changeover
• Suitable for high volume production
• Hose clamping system (recommended for hoses over 2″)
• 2-way rotation
• Variable speed (single phase version)
Model shown: OEM version with Pneumatic Clamping system option
TECHNICAL SPECIFICATIONS
CAPACITY*
2wb: 2” max.
4ws: 2” max.
6ws: 3” max.*
*With clamping system
ROTATION SPEED
300 RPM
MOTOR
0.9 kW
VOLTAGES
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
380/415 V, 3Ph, 60 Hz
DIMENSIONS
675 x 550 x 1130 mm
(27 x 22 x 44”)
PACKAGING
800 x 600 x 1200 mm
(32 x 24 x 47”)
NET WEIGHT
100 kg (220 lb)
GROSS WEIGHT
160 kg (353 lb)
TECHNICAL FEATURES
Options available: speed regulator, hose clamping system (limited to distribution workshop using sizes under 2")
Tools available (to be ordered separately):
ESA, IS, ESP1, ESP2
OPTIONAL ACCESSORIES
TOOL KIT ESE
TOOL KIT IS
TOOL KIT ESP 1
TOOL KIT ESP 2

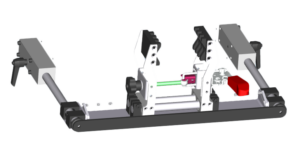

MANUAL HOSE CLAMPING SYSTEM

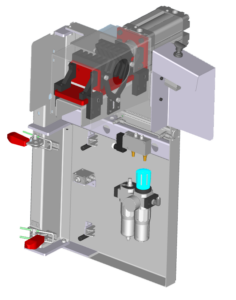

PNEUMATIC HOSE CLAMPING SYSTEM
SPEED REGULATOR
