M 50 SKY

M 50 SKY

SMALL SERVICE WORKSHOP
BENCHTOP SKIVING

KEY FEATURES
• Plug’n skive system
• Compact & stable
• Safety switch on the cover
• Good visibility
• Tool storage included
• Foot pedal drive with emergency stop
• 2-way rotation

CAPACITY*
2wb: 2” max.
4ws: 2” max.

ROTATION SPEED
100 RPM

MOTOR
0.25 kW

VOLTAGES
220/240 V, 1Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
220/240 V, 1Ph, 60 Hz
380/415 V, 3Ph, 60 Hz

DIMENSIONS
500 x 660 x 360 mm
(19 x 26 x 14”)

 PACKAGING
800 x 600 x 700 mm
(31 x 24 x 28”)

NET WEIGHT
42 kg (93 lb)

GROSS WEIGHT
55 kg (121 lb)

TECHNICAL FEATURES
Tools available (to be ordered separately)
ESE, IS, ESP1, ESP2

Single-phase S3 25% service factor.

MH-Standard-Optional-Items-CME-Electrical-Footswitch
OEM ELECTRICAL FOOTSWITCH
MH-Standard-Optional-Tool-Kit-IS MH-Standard-Optional-Tool-Kit-ESE

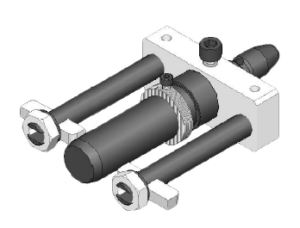

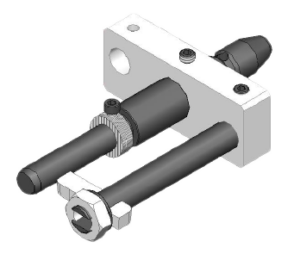

TOOL KIT IS TOOK KIT ESE TOLL KIT ESP 1 TOLL KIT ESP 2

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
