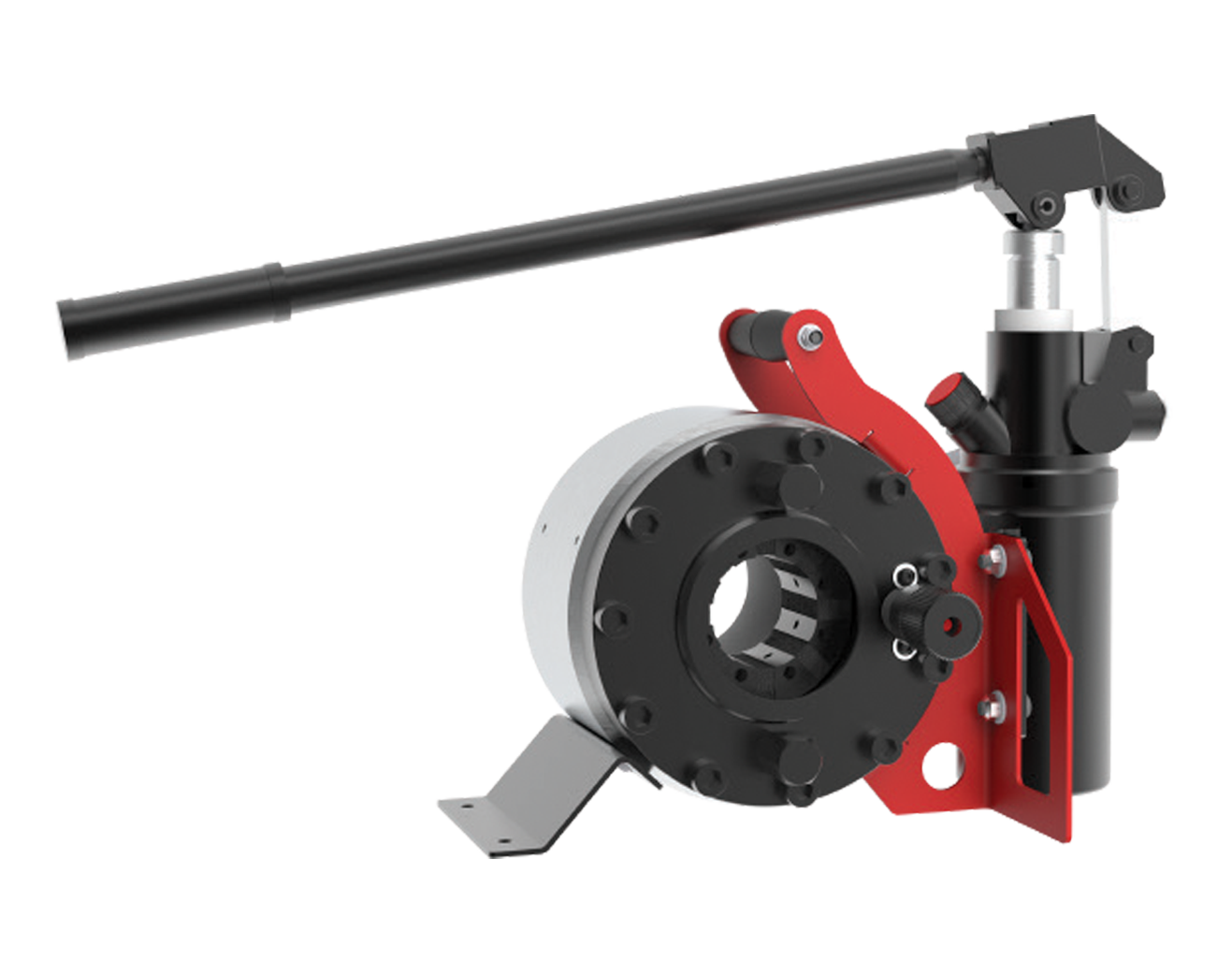

MHP 80 EVO

MHP 80 EVO

FIELD SERVICE & MOBILE WORKSHOP
HAND PUMP, PORTABLE

KEY FEATURES
• Compact
• Lightweight
• Easy to use
• Balanced design
• Dual stage pump

CAPACITY*
2wb: 1” max.
4ws: ½” max.

CRIMP RANGE
6 – 43 mm (0.236 – 1.693”)

CRIMP FORCE
80 t

OPENING WITH DIES
+20 mm (+0.787”)

COMPLETE OPENING
59 mm (2.323”)

MASTER DIE LENGTH
56 mm (2.205”)

STANDARD DIES
16, 18, 20, 22, 24, 27, 30**

 DIMENSIONS
360 x 270 x 390 mm
(14 x 11 x 15”)

PACKAGING
800 x 600 x 830 mm
(31 x 24 x 33”)

NET WEIGHT
26 kg (57 lb)

GROSS WEIGHT
39 kg (86 lb)

TECHNICAL FEATURES
Hand pump: 5000 psi (double speed)

*Indicative capacities depending on hose and fitting type
** Master-dies used as dies set N°39


MAINTENANCE KITS HYDRO-PNEUMATIC PUMP

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
