Technical Specifications:

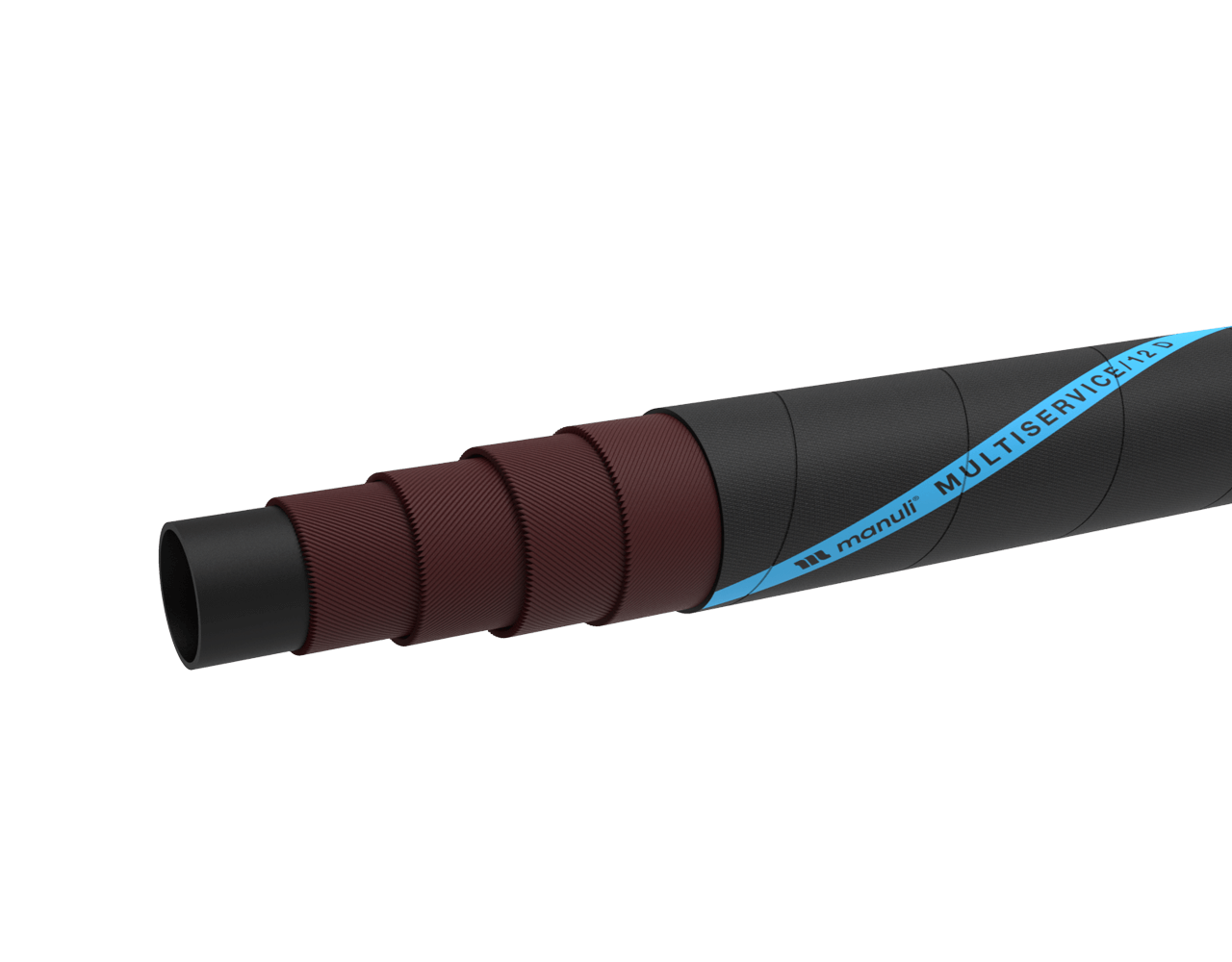

Water and compressed air hose for use in mining, construction, shipyards, etc.
WORKING PRESSURE: 12 bar / 170 psi.
TUBE: Black, smooth, synthetic SBR rubber.
REINFORCEMENT: High-tensile synthetic cord.
COVER: Black, synthetic SBR rubber. Long-lasting weathering and ozone resistant. Mylar layline for positive, permanent identification.
FEATURES: Softwall delivery structure; Highly robust hose structure; Long lasting in severe applications;
Long length assemblies available – Max. length: 61m
TEMPERATURE RANGE: From -35°C to +80°C (-31°F to +176°F).
| MULTISERVICE/12 SD | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | DASH | SKIVE |
| H80007013 | 12 | -8 | SR+D08000 SERIES |
| H80007019 | 19 | -12 | SR+D08000 SERIES |
| H80007025 | 25 | -16 | SR+D08000 SERIES |
| H80007031 | 31 | -20 | SR+D08000 SERIES |
| H80007038 | 38 | -24 | SR+D08000 SERIES |
| H80007051 | 51 | -32 | SR+D08000 SERIES |
| H80007063 | 63 | -40 | SR+D08000 SERIES |
| H80007076 | 76 | -48 | SR+D08000 SERIES |
| H80007102 | 102 | -64 | SR+D08000 SERIES |
