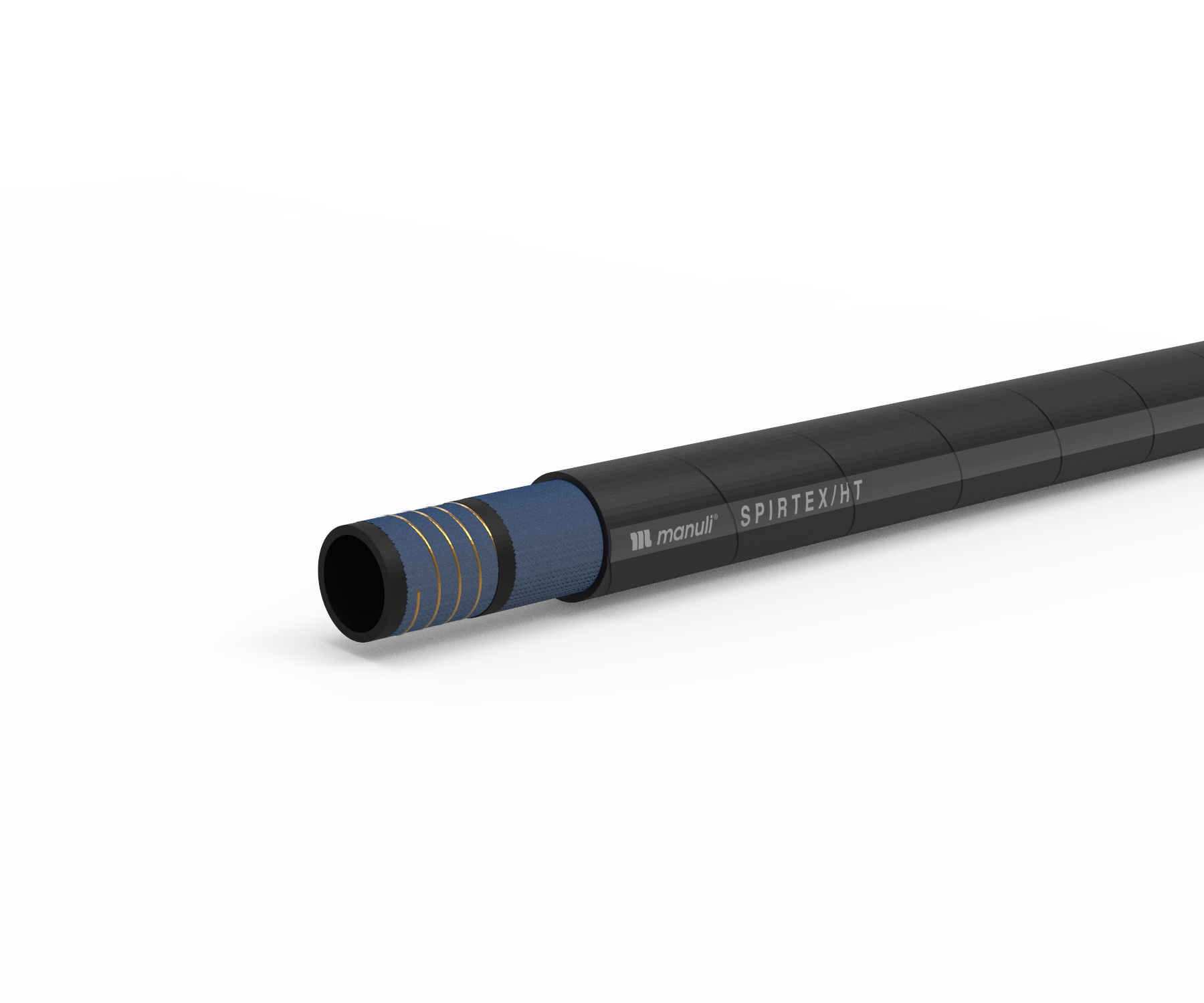

SPIRTEX/HT
HIGH PERFORMANCE SUCTION & RETURN HOSE, EXCEEDS SAE 100 R4
V
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H80003019* | 19 | -12 | 3/4″ | – | – | 28.5 | 1.12 | 25 | 360 | 100 | 1,450 | 80 | 3.15 | 530 | 0.36 | MF+M00321-12 | – |
| H80003025* | 25 | -16 | 1″ | – | – | 35.0 | 1.38 | 25 | 360 | 100 | 1,450 | 100 | 3.94 | 640 | 0.43 | MF+M00930-16 | – |
| H80003031* | 31 | -20 | 1.1/4″ | – | – | 42.0 | 1.65 | 17 | 250 | 70 | 1,010 | 130 | 5.12 | 870 | 0.58 | MF+M00920-20 | – |
| H80003038* | 38 | -24 | 1.1/2″ | – | – | 48.5 | 1.91 | 17 | 250 | 70 | 1,010 | 170 | 6.69 | 1,120 | 0.75 | MF+M00910-24 | – |
| H80003051* | 51 | -32 | 2″ | – | – | 61.5 | 2.42 | 10 | 150 | 42 | 600 | 200 | 7.87 | 1,188 | 0.80 | MF+M00910-32 | – |
| H80003063* | 63 | -40 | 2.1/2″ | – | – | 75.0 | 2.95 | 10 | 150 | 42 | 600 | 235 | 9.25 | 2,330 | 1.57 | MF+M03400-40 | – |
| H80003076* | 76 | -48 | 3″ | – | – | 87.5 | 3.44 | 7 | 100 | 28 | 400 | 300 | 11.81 | 2,800 | 1.88 | MF+M03400-48 | – |
| H80003089* | 89 | -56 | 3.1/2″ | – | – | 103.0 | 4.06 | 5 | 70 | 21 | 300 | 350 | 13.78 | 3,620 | 2.43 | MF+M03400-56 | – |
| H80003102* | 102 | -64 | 4″ | – | – | 114.5 | 4.51 | 5 | 70 | 21 | 300 | 400 | 15.75 | 4,220 | 2.83 | MF+M03400-64 | – |
KEY FEATURES
• Hardwall hose used for the suction and delivery of hydraulic oils
• Improved minimum bend radius
• Higher working pressure than SAE J517 100R4 spec.
• Long lasting in severe applications
• Resistance to Vacuum
• Special rubber compounds for high aging resistance
• Max. length: 60m
APPLICATIONS & FLUIDS
• Hydraulics: suction lines, return lines
• Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
135 °C, 275 °F
TUBE
NBR synthetic rubber
REINFORCEMENT
High tensile synthetic cord, helix body wire
COVER
Weather and ozone resistant synthetic rubber, flame retardant with high heat resistance
APPLICABLE SPECS
SAE J517 100 R4, Manuli® Design; two-thirds of the SAE J517 100 R4 minimum bend radius
TYPE APPROVALS
CU-TR
