Technical Specifications:
Delivery of Potable hot water mixed with steam and detergents. Suitable for washdown and sterilization in the food industry.
WORKING PRESSURE: 7 bar / 105 psi.

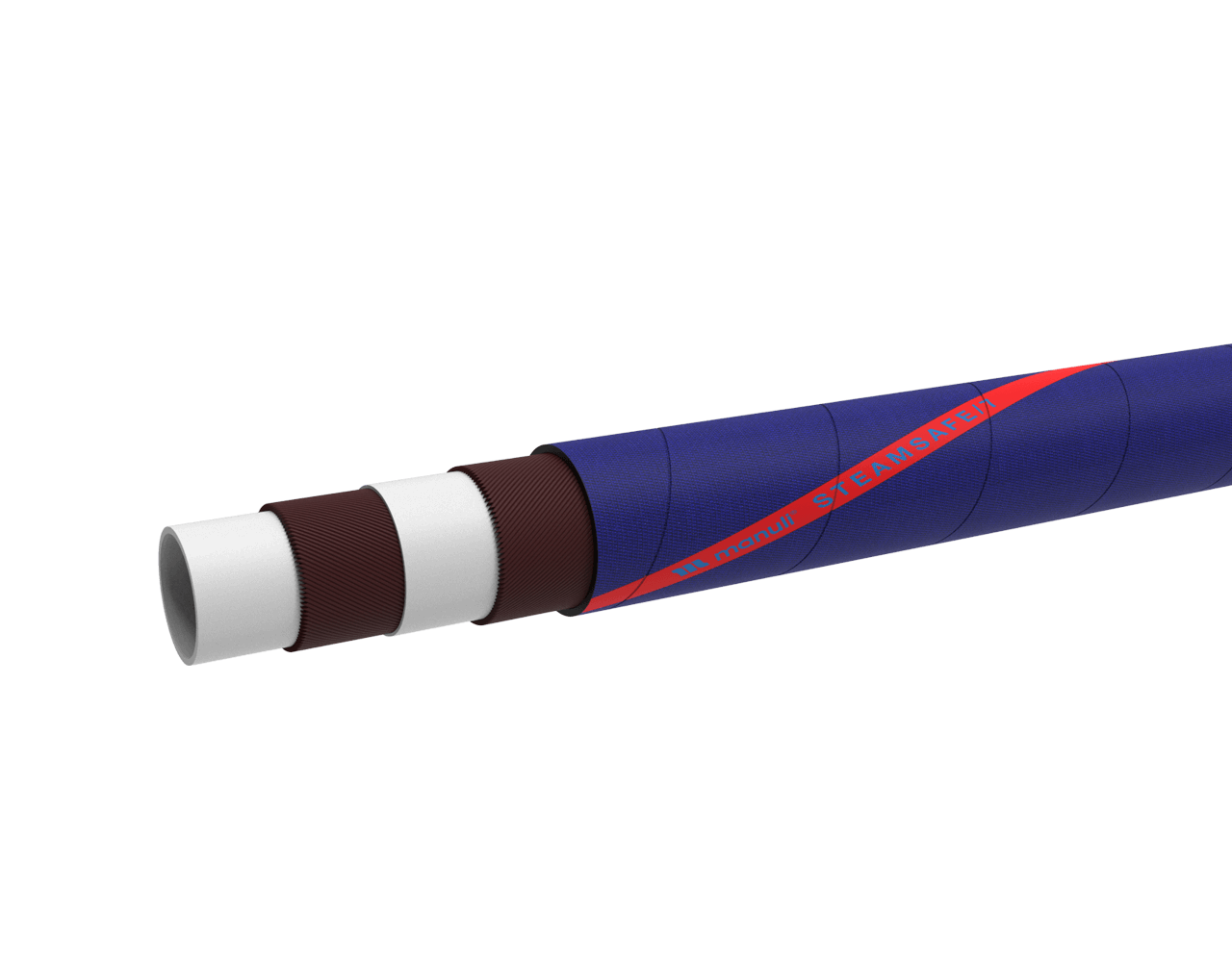

TUBE: White, EPM rubber.
REINFORCEMENT: High tensile synthetic cord.
COVER: Red, synthetic EPM pin-pricked rubber. Long-lasting oil, abrasion, weathering and ozone resistant. Mylar layline for positive, permanent identification.
FEATURES: Hardwall delivery structure; Compact, lightweight and flexible; Highly robust hose structure; Long lasting in severe applications.
Long length assemblies available – Max. length: 20m (DN 10); 40m (DN12 – DN 16); 61m (DN 19 – DN 25)
APPLICABLE SPECS: FDA Title 21, art. 177.2600 for aqueous foods
TEMPERATURE RANGE: From -40°C to +170°C (-40°F to +338°F).

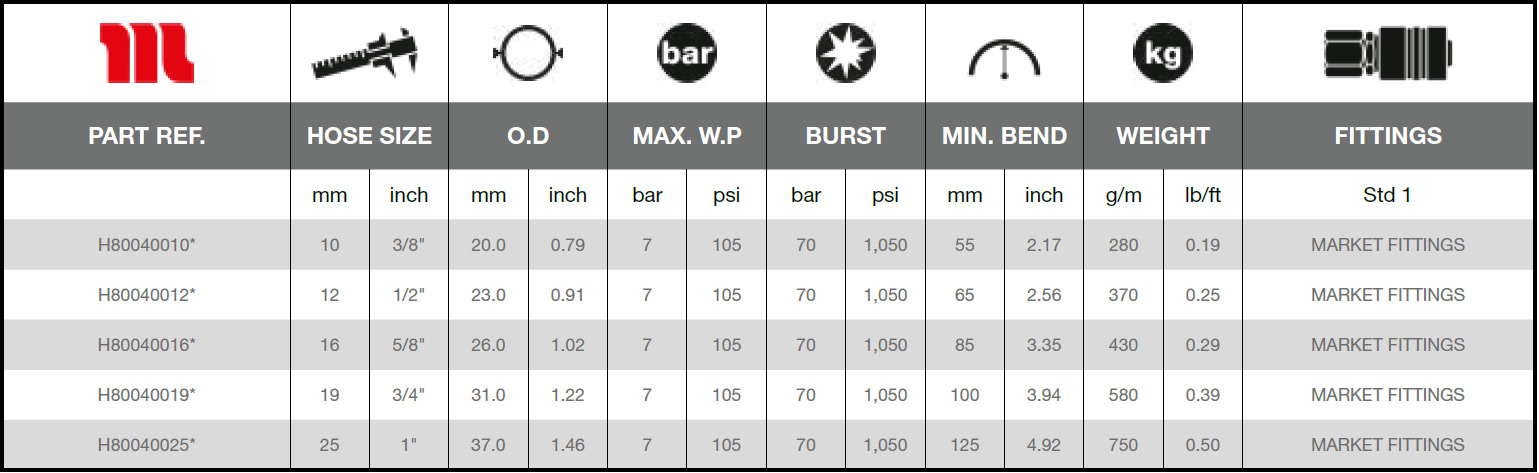

| STEAMSAFE/7 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | DASH | SKIVE |
| H80040010 | 10 | -06 | MARKET FITTINGS |
| H80040012 | 12 | -08 | MARKET FITTINGS |
| H80040016 | 16 | -10 | MARKET FITTINGS |
| H80040019 | 19 | -12 | MARKET FITTINGS |
| H80040025 | 25 | -16 | MARKET FITTINGS |
