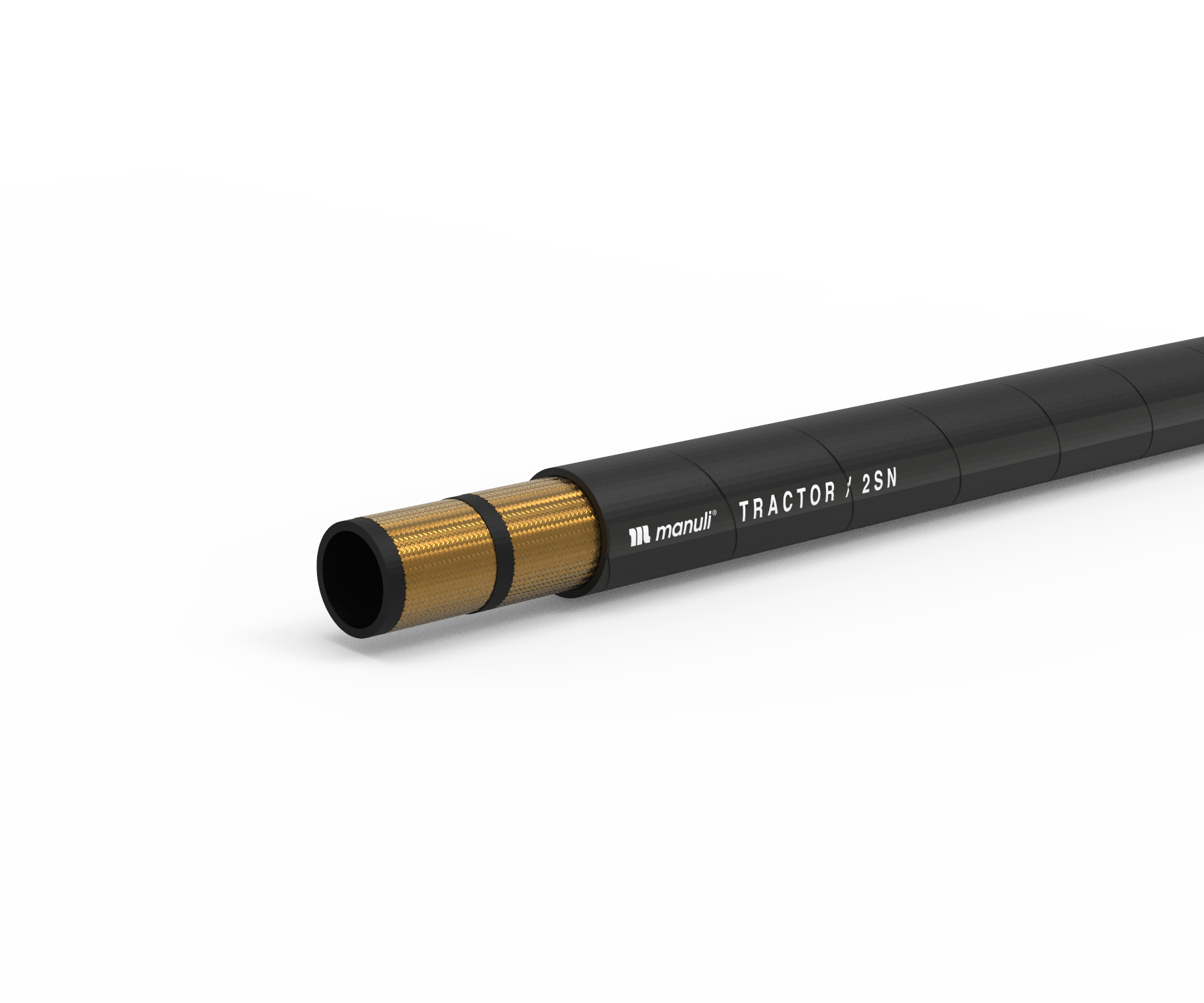

TRACTOR/2SN
INTEGRATED, RELIABLE HOSE ASSEMBLY
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01027006* | 6 | -4 | 1/4" | 12.7 | 0.50 | 14.7 | 0.58 | 400 | 5,800 | 1,600 | 23,200 | 100 | 3.94 | 370 | 0.25 | MF+M03400-04 | OPF-04 |
| H01027008* | 8 | -5 | 5/16" | 14.3 | 0.56 | 16.3 | 0.64 | 350 | 5,070 | 1,400 | 20,300 | 114 | 4.49 | 410 | 0.28 | MF+M03400-05 | OPF-05 |
| H01027010* | 10 | -6 | 3/8" | 16.7 | 0.66 | 18.7 | 0.74 | 330 | 4,780 | 1,320 | 19,140 | 127 | 5.00 | 530 | 0.36 | MF+M03400-06 | OPF-06 |
| H01027012* | 12 | -8 | 1/2" | 19.8 | 0.78 | 21.8 | 0.86 | 275 | 3,980 | 1,100 | 15,950 | 178 | 7.01 | 620 | 0.42 | MF+M03400-08 | OPF-08 |
KEY FEATURES
• EN/DIN and new SAE rated working pressures
• Wide range of TYPE APPROVALS available
• Flame retardant property of the cover compound, MSHA approved
• Halogen-Free hose line
APPLICATIONS & FLUIDS
• Hydraulics: low-medium pressure lines, return lines
• Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel braids
COVER
Weather resistant synthetic rubber
APPLICABLE SPECS
EN 853 2SN; SAE 100 R2AT; ISO 1436 2SN/R2AT
TYPE APPROVALS
MSHA, CU-TR
